Single Product
Abtech Fire Rated Enclosures – Tested to AS/NZS 3013:2005

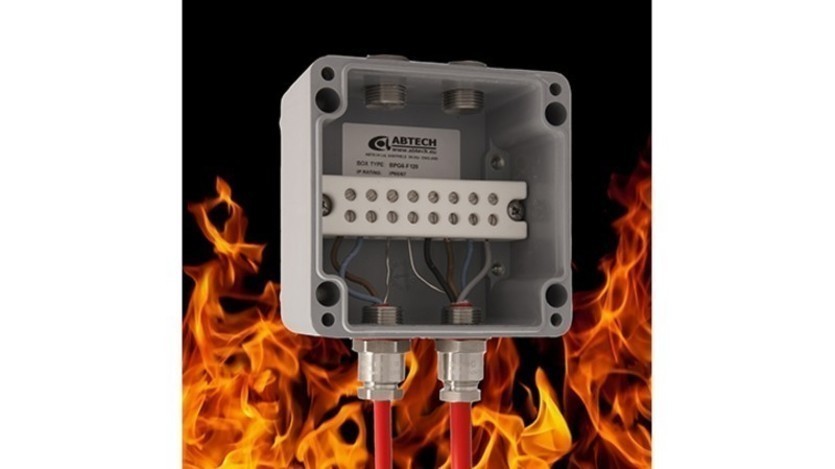

The BPGF is a fire-rated GRP junction box engineered to enhance fire survivability for safety-critical electrical circuits. Tested to provide PH120 insulation integrity in accordance with BS EN 50200, it ensures reliable performance even under extreme fire conditions. Designed for demanding environments, the BPGF helps maintain circuit integrity for essential systems such as alarms, emergency lighting, and fire suppression equipment. Available in two enclosure sizes, the BPGF range comes pre-assembled with Abtech’s 8-way or 12-way ceramic terminal blocks for convenient installation. Each unit is equipped with four M20 threaded entries, two stainless steel plugs, and two transit plugs. Tested to withstand 120 minutes of direct fire exposure exceeding 930°C, with additional resistance to water spray and mechanical shock, the BPGF is rated to 600 Vrms, ensuring dependable protection and long-term durability in fire-critical applications.
- 120 minutes insulation integrity at 930°C to BS EN 50200
- IP66 Ingress protection
- All stainless steel fixings
- 8-way and 12-way ceramic terminals
- Pre-built ready for installations
- Enclosure type: Pre-assembled fire resistant GRP
- Ingression protection: IP66 to EN60529
- Impact resistance: >7Nm
- Ambient temperature rating: -65°C to +130°C (for normal operation)
- Material: Glass reinforced polyester in grey (RAL7001). Captive 316 stainless steel fasteners and ceramic terminal block.
- Oxygen index: 41.8%
- Smoke density: 0.0328
- Toxicity: CITNLP = 0.05 ‘R’ Value to BS6853 Annex B.1 = 0.23
- Connector size: Up to 6mm2
- PH120: Insulation integrity (120-minute exposure) in accordance with BS EN 50200 & BS 8434-2 (>9300C) with exposure to fire with water spray & mechanical shock. Rated voltage 600V rms.
- IEC331: Insulation integrity (180-minute exposure) in accordance with IEC (>7500C) with exposure to fire with water spray & mechanical shock. Electrical system fully functional before, during and after test.
