Multiple signals accepted ...
Accepts multiple types of signals, from voltages AC and DC, currents AC and DC, 10 types of thermocouples, Pt and Ni temperature probes, NTC probes, process signals and resistance signals.
400 Vac, 200 Vac, 20 Vac, 2 Vac, 200 mVac, 60 mVac, 5 Aac, 20 mAac
±400 Vdc, ±200 Vdc, ±20 Vdc, ±2 Vdc, ±200 mVdc, ±60 mVdc, ±5 Adc, ±20 mAdc
thermocouples K, J, E, N, L, C, R, S, B, T
Pt100, Pt500, Pt1000
Ni100, Ni120, Ni1000
NTC
4/20 mA, 0/10 Vdc
resistances 0/10 K et 0/100 K
... in a single instrument ...
The same single instrumen can be configured to work with all listed signals.
... with an unbeatable price.
General specifications
The Series C of digital panel meters offers versatility and reliability in common industrial applications, providing a single unit capable of covering a wide range of analog signal applications, including AC and DC currents, AC and DC voltages, thermocouples, RTD (Pt and Ni), NTCs, process signals, and resistances.
Series C achieves a reduced price primarily due to reduced technical specifications (accuracy and response time), compared to upper-grade series like Series M. However, it still offers approximately 0.2% FS accuracy and 3 acquisitions per second.
Series C also has limited compatibility for output and control options compared to Series M but can still feature 1 or 2 relay outputs, 1 analog 4/20mA output, or 1 serial RS-485 ASCII output. All circuits are isolated.
Series C benefits from scale economy, utilizing high-quality components, power supplies, housings, and quality procedures from the higher-grade Series M.
The Series C internal architecture features a modular design, providing field-upgradable option cards to expand functionality as needed.
In short, Series C is the recommended series for OEM companies due to its reduced price and wide range of accepted signals. It offers a compact, technically reliable solution that adapts to a wide range of needs in the industrial automation field.
| General specifications | |
|---|---|
| Digits | 4 |
| Digit Height | 14 mm |
| Reading Distance | Up to 5 meters |
| Color | Red |
| Reading Range | 9999/-1999 |
| Decimal Point | Configurable by menu |
| Type of Digit | 7-segment LED |
| Input Channels | 1 |
| Configuration | 3 mechanical front push buttons (optional without push buttons) |
| Internal jumpers for range selection | |

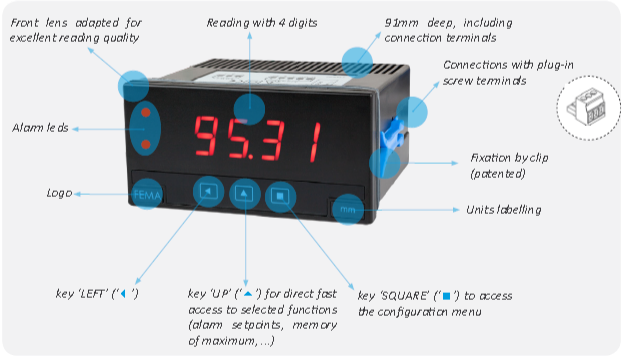

| Front Size | 96 x 48 mm (1/8 DIN) |
| Front Protection | IP50 (optional IP54, IP65) |
| Mounting | Panel, optional DIN rail mount, optional wall mount, optional benchtop housing |
| Weight | <150 gr |
| Depth | 91 mm (included connection terminals) |
| Connections | Plug-in screw terminals |
| Power Supply – H | 85-265 Vac/dc |
| Power Supply – L | 11-60 Vdc and 24/48 Vac |
| Power Supply Isolation – H | 2500 Veff |
| Power Supply Isolation – L | 1500 Veff |
| Consumption (Meter Only) | <1.5 W |
| Consumption (Meter with Options) | <2.5 W |
| Operating Temperature | 0 to 50 ºC |
| Storage Temperature | -20 to +70 ºC |

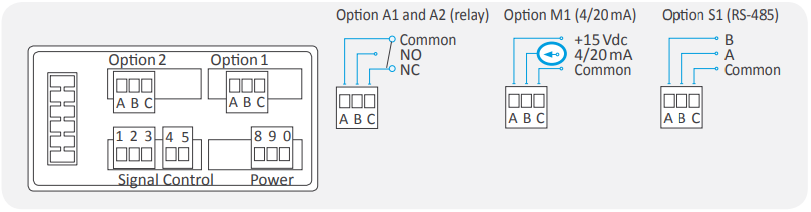

| Output and Control Options | 2 slots (Opt.1 and Opt.2) relay, analog output, serial RS-485 |
Output and control options

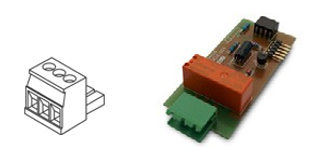

Relay outputs
Module ………. A1 (for Opt.1) and A2 (for Opt.2)
Function ………. 1 relay output
3 contacts (NC, NO, Common)
up to 250 Vac @ 8 Ampere

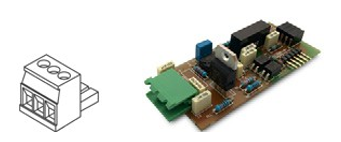

Analog output
Module ………. M1 (for Opt.1)
Function ………. 1 analog output isolated
4/20 mA isolated 1000 Vdc

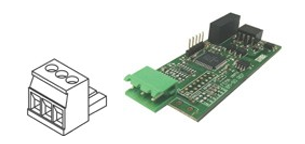

Output RS-485 ASCII
Module ………. S1 (for Opt.1)
Function ………. 1 communication RS-485
isolated 1000 Vdc
